Full Servo Band Saw Paper Cutting Machine Features

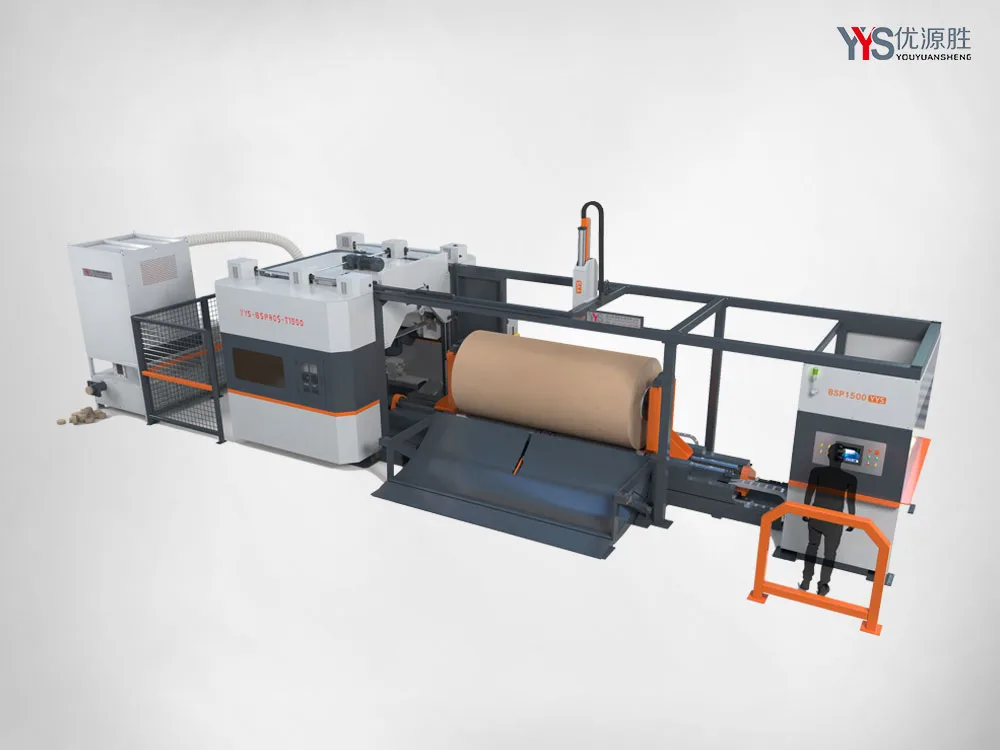

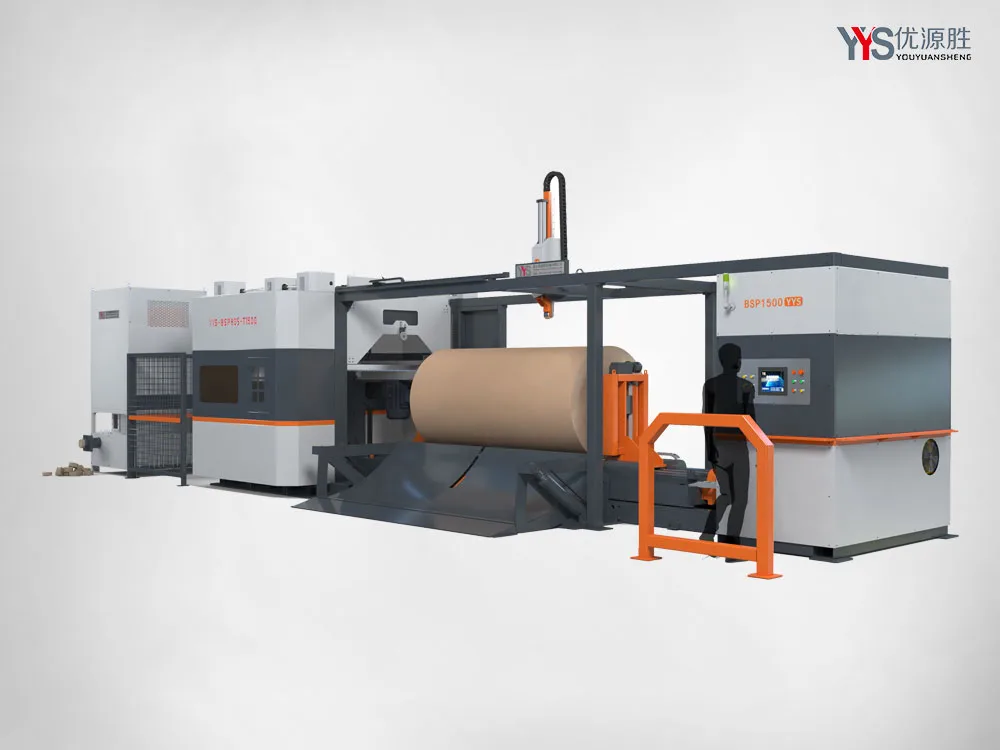

The Full Servo Band Saw Paper Cutting Machine is a high-precision, fully automated roll-to-roll slitting machine.
It minimizes manual intervention and material waste, making it ideal for processing high-value coiled materials such as coated art paper and white cardstock.
Automatic roll loading/unloading
2mm band saw blade

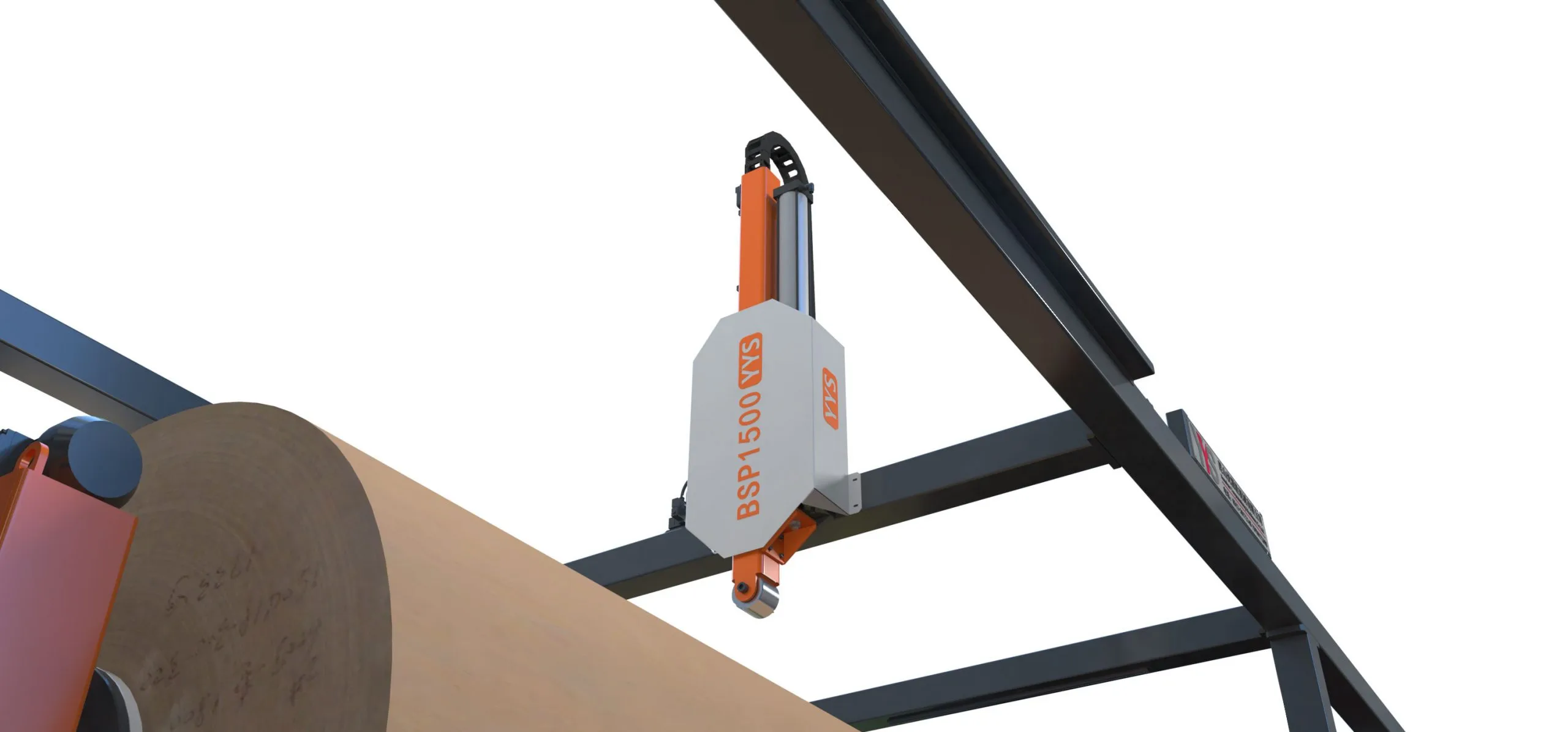

Automatic diameter measurement
Cutting Surface
ART PAPER
CONTAINER BOARD
CARD PAPER
KRAFT PAPER
Full Servo Band Saw Paper Cutting Machine Description
Working Principle:
The servo band saw paper cutting machine utilizes servo motors to drive the paper lifting frame and support frame, achieving precise positioning for cutting.
Its hydraulic transmission system, composed of pumps, valves, and cylinders, handles material loading and unloading.
The electrical control system manages the rotation of the saw blade and the lifting of the saw beam, ensuring the cutting process follows preset programs.
| Model | YYS-BSP80S-T1600 |
| Roll Width | 700mm-3000mm |
| Roll Dia | 700mm – 1500mm |
| Paper Loss | 2mm |
| Time Consuming | 12 mins, the lower the GSM, the faster the cutting. |
| Voltage Frequency | 380V/50-60Hz (customizable) |
| Total Power | 53 kW |
| Control System | PLC Full automatic |
| Weight | 13T |
| Saw blade lifetime | The band saw blade can be reused after being sharpened. |
| LxWxH | 13228x4020x3953mm |
| Special models can be customized according to the paper roll specification | |
YYS's Services
7Days 24Hours online
Engineers have 8 years experience in this Industry
Machine with International brands components and precision manufacturing
YYS With high-quality products, stable use of effects, perfect, meticulous, fast after-sales service won the trust of customers
Precision-Engineered Band Saw Paper Cutting Solutions
Whether you’re a paper mill, packaging/printing firm, machinery distributor, or related business, selecting the ideal roll paper cutter is critical for operational efficiency.
CERTIFICATES
